E-HYDROJET

Combined Hydrofinish and Waterjet Cutting Machine

The equipment is able to cut all stone materials by an high pressure hydro-abrasive waterjet and to texture their surface by water only.

Request information Download brochure

E-HYDROJET Details

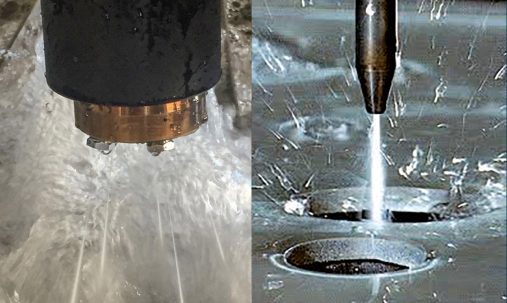

Waterjet-hydrofinish

Rotating nozzle body for homogeneous finishing or decoration of shapes combined with high-pressure hydro-abrasive water jet nozzle body.

The equipment is able to cut all stone materials by an high pressure hydro-abrasive waterjet and to texture their surface by water only.

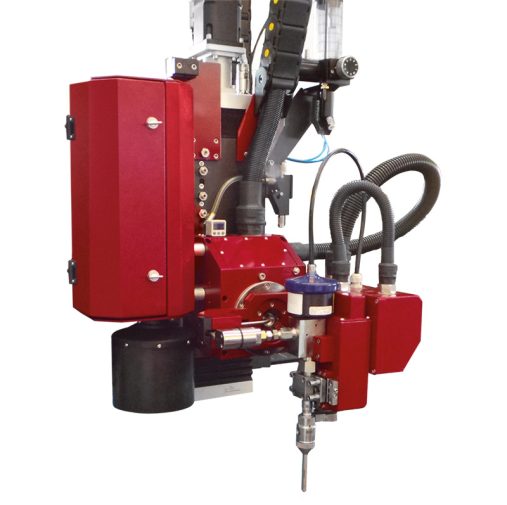

3 axis system with Hydro-Finish Device

3 axis system with Hydro-Finish Device

3 axis system with Hydro-Finish Device

5 axis cutting system ±55° with Hydro-Finish Device.

Features

CL 510
Net Cutting Area X = 3.050 mm (10')
Y = 1.800 mm (6')
Z = 180 mm (7")
Inner Table Working Area 3.675 mm x 2.100 mm
(12' x 7')
Overall Dimensions 4.500 mm x 2.300 x h 1.800 mm
(15' x 7' 1/2 x h 6' 1/2)
Rapid Speed 0-30 mt / min
(0 - 100' / min)
Weight 3.000 Kg
(6.700 lb)
Total Positioning Accuracy / Full Length ± 0,075 mm
(± 0,003")
Repeatability ± 0,05 mm
(± 0,002")
Ball Bar Ø 300 mm (12”) ± 0,075 mm
(± 0,003")
