Optima

Chef Line range: for cutting fresh and frozen food products

OPTIMA: in-line cutting system for the food industry

Automatic rotating stainless steel net support system for continuous in line processing with the possibility of multiple cutting nozzles mounted on the same cantilever interpolating bridge.

Applications

Request information Download brochure

E-OPTIMA Details

E-OPTIMA Sistema automatico di supporto a rete rotante in acciaio inox. Per un lavoro fluido ad alto rendimento.

Automatic rotating stainless steel net support system.

For a smooth, high-performance production.

E-OPTIMA Rete continua rotante in acciaio inox

Automatic rotating stainless steel conveyor

E-OPTIMA Sistema automatico di supporto a rete rotante in acciaio inox. Per un lavoro fluido ad alto rendimento.

Single or multiple cutting system

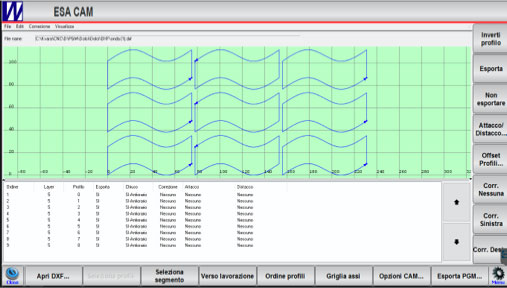

CNC controllo numerico e HMI

CNC, programming and diagnostic touch screen display

Discover details

Features

E-OPTIMA
Machine dimension 3280 x 1050 x h 1800mm
(130" x 42" x h 71")
Net Working Travel Area 600 x 400 x h 100 mm
(24" x 16" x h 6")
Integrated Hybrid Servo Intensifier Pump Energy Saving 5 kW
Water Consumption 0,3 ÷ 1 lt/min
(0,075 ÷ 0,25 gal/mm)
Orifice Size Diametr 0,1 ÷ 0,2 mm
(0,004" ÷ 0,008")
Working pressure Fino a 4.000 Bar
Up to 60 Kpsi
Oil Tank 10 lt
(2,5 gal)
Cutting speed 8 cm/sec
(3"/sec)
